MicroPen EVO

Your patients have experienced the incredible, transformative results from microneedling. With the FDA cleared Eclipse MicroPen EVO, your practice can be a part of the future. EVO is microneedling evolved.

This evolution is made possible by the physician-designed pen with its ergonomic form, simple to operate functionality, and convenience of wireless charging.

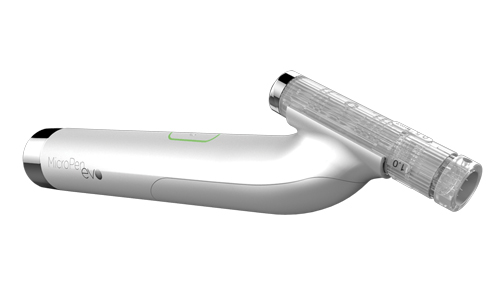

Eclipse MicroPen EVO

Ergonomic

Angled cartridge allows improved visibility

Innovative

Pen body engineered with lightweight aerospace-grade magnesium alloy

Simple Operation

One touch power on and off with LED indicator light, LED on battery pack indicates when to recharge

Convenience

Self-contained charging station allows wireless charging in 3-6 hours

Customizable

Adjustable depth feature on sterile, disposable, single-use cartridge

Hygienic

Teflon gear seal to prevent fluid transfer into body of the pen

Precise

7000 RPM (+/- 10%) motor and  precise depth adjustment

Portable

4+ hour lithium-ion battery for cordless operation (2 included)

How it Works

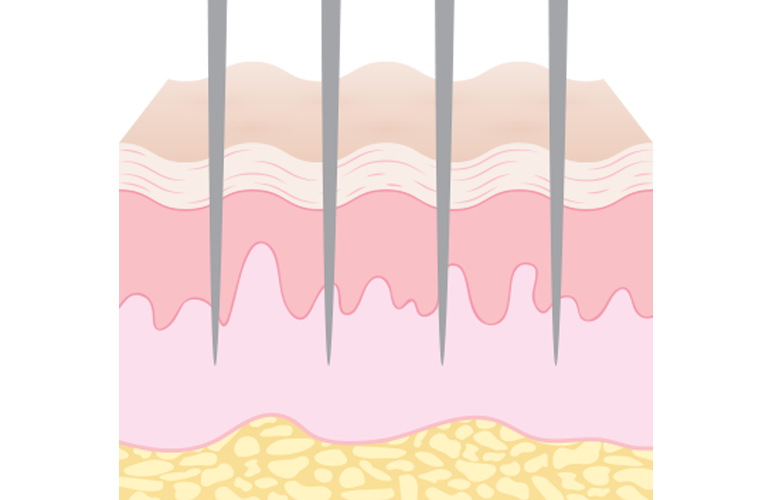

MicroPen EVO creates controlled micro-injuries to the skin

Microneedling Step 1

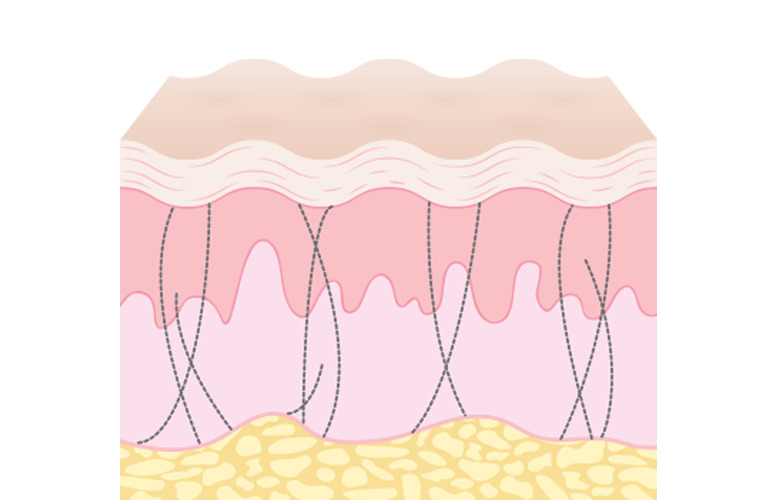

Collagen is stimulated in the remodeling phase

Microneedling induces collagen production

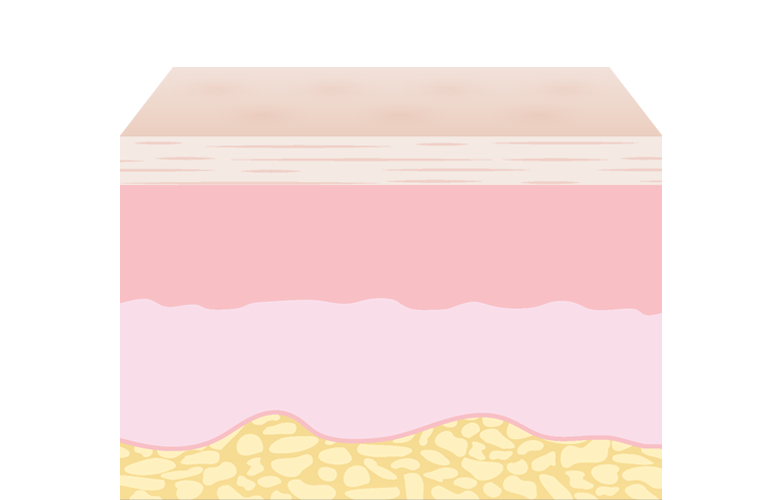

Resulting in skin texture and tone improvement

Dr. Joel Cohen

“I have been an Eclipse customer for a decade. I trust their products for my patients and my practice. Eclipse makes reliable products and the new MicroPen EVO clearance takes it all to a higher level.”

DR. JOEL COHEN



Product Specifications

MicroPen EVO
Eclipse Turbo Safety Cartridge

MicroPen EVO

  • Product Name: MicroPen EVO
  • Model Number: EVO1000-010
  • Eclipse FDA Registration #: 3009032449
  • Charge Time: 3-6 Hours
  • Working Time: 4+ hours per battery/8 hours per day
  • Speed: 7000 RPM +/- 10%
  • Needles: 14 pin, 32g, Stainless Steel
  • Maximum Depth: 2.0 mm
  • Operation: Cordless
  • Spot Size: .4 sq. cm.
  • AC Adapter Input: 100-240Vac 50/60Hz
  • EU RoHS Compliant

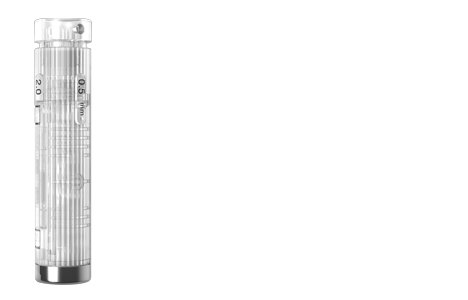

Turbo Safety Cartridge

  • 14 Total Solid Needles
  • 32 BWG (Gauge)
  • <32 RMS (Roughness)
  • Medical Grade Stainless Steel
  • Sharpness Specification within the Radius 0.005mm (Max)
  • Maximum Extension of the Needles from the Needle Head   Surface is less than 2.7mm
  • Maximum Penetration Depth: 2.0 mm
  • Puncture Rate: 105 -128 stamps/second
  • Operation: Cordless
  • Spot Size: .4 sq. cm.
  • AC Adapter Input: Medical Grade, Universally compatible power requirements: 100-240 VAC at 50-60 Hz

Leaders in Microneedling

The MicroPen EVO’s technology is refined for an intensified collagen induction therapy. That translates to more collagen stimulation in every appointment. EVO offers a true solution to patients with facial acne scars looking to improve their skin’s tone, texture, and color with each visit.

Regulatory Status

FDA cleared 510(k) Class II medical device.
